Product Description:

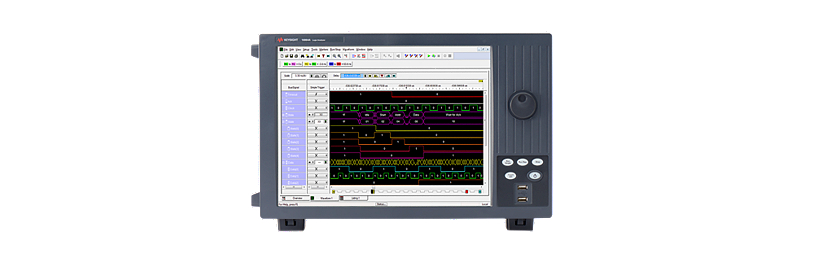

The Keysight16860A series is the industry's highest performing portable logic analyzer, providing you with the deepest insight to tackle your toughest digital debugging challenges. High-speed status and timing capture with deep memory. Capture most system activity (up to 128Mb) at the highest resolution to identify the root cause of widely spaced problems and symptoms. 16861A 34-channel portable logic analyzer signal integrity; Quickly identify problematic signals by displaying eye maps of all channels simultaneously.

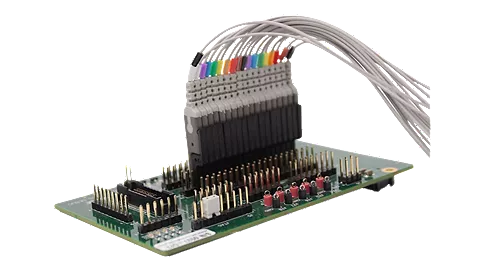

The U4203A General purpose Flyline logic analyzer probe can be used with the 16850A series portable logic analyzer.
Features:
-
The 1.4GHz trigger sequence generator ensures the capture of high-speed events
-
16861A 34-channel Portable Logic Analyzer Timing Analysis (asynchronous sampling)
-
Up to 2.5GHz/5.0GHz (full channel/half channel) timing, enabling capture of signal activity at high resolution
-
single-ended
-
Differential clock
-
Direct connection
