Product Description：

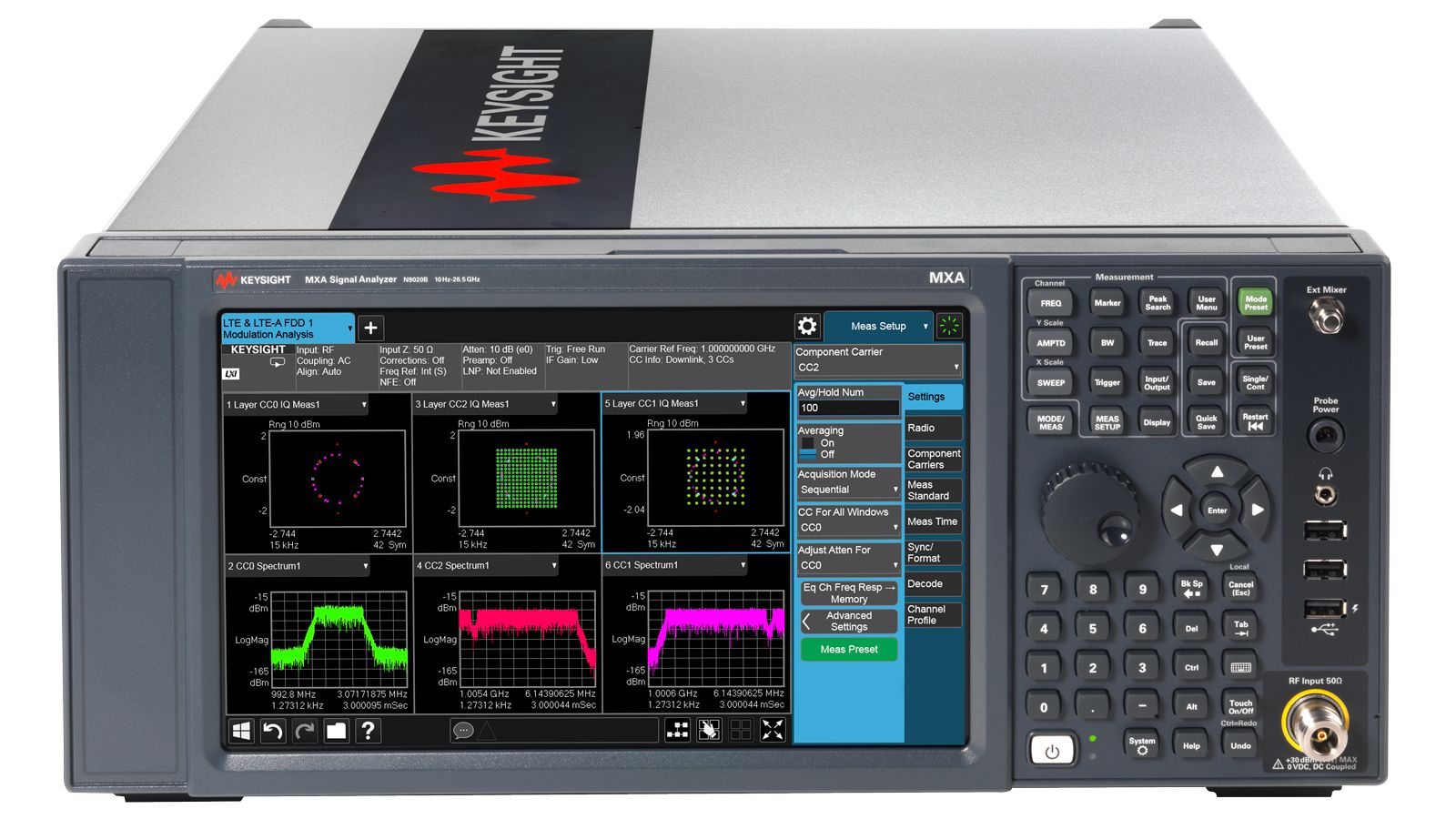

Built for wireless device test, the MXA signal analyzer helps you characterize signals from virtually any wireless device quickly and confidently with up-to-date parametric or RF functional tests. The intuitive multi-touch interface minimizes measurement complexity, even when working with cutting-edge devices.
Main feature:
-
See more with a wide frequency range of 10 Hz to 50 GHz with up to 160 MHz analysis bandwidth
-
Shorten test times with hardware-accelerated power measurements, rapid display updates, rapid marker peak searches, and fast sweeps
-
Get complete signal characterization by capturing longer I/Q samples
-
Accurately analyze complex signals with EVM as low as 0.3 percent (–50 dB)
-
Simplify testing with one-button measurements using PathWave X-Series measurement applications
-
Capture elusive or transient signals with full-band real-time spectrum analysis
Option specifications:
-
526: Frequency range, 10 Hz to 26.5 GHz
-
B40: Analysis bandwidth, 40 MHz
-
DP2: Digital processor, 2 GB capture memory
-
EP2: Enhanced phase noise performance
-
FS1: Quick scan, enable
-
FS2: Enhanced fast scanning speed
-
MPB: Microwave preselector bypass
-
MTU: Upgrade to multi-touch user interface
-
PC6: Quad-core 64-bit high-performance processor, 16 GB RAM
-
P26: Preamplifier, 26.5 GHz
-
PFR: Precision frequency reference
