Product Description:

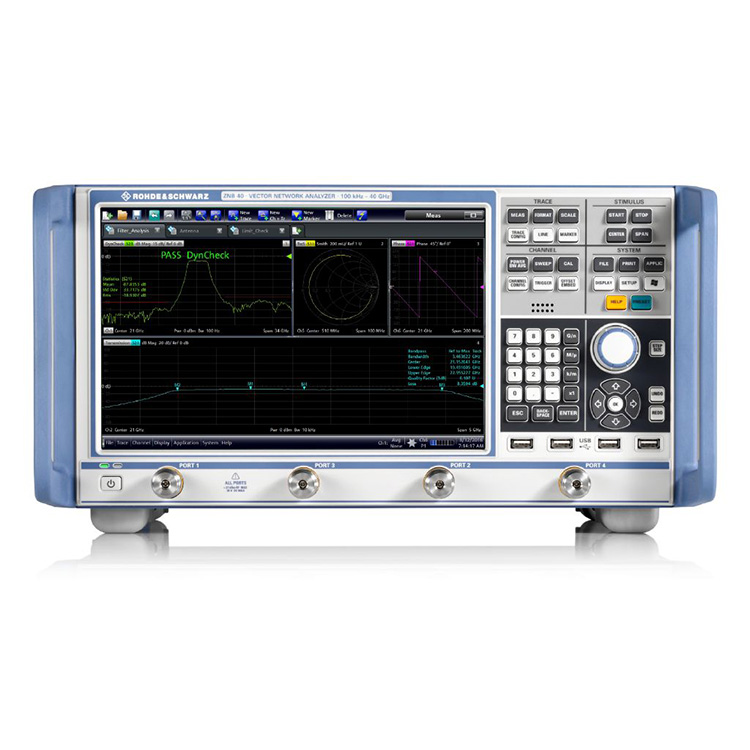

Rohde & Schwarz's R&S®ZNB43 is a 2/4-port vector network analyzer (VNA) that can measure frequencies from 100 kHz to 43.5 GHz. It has a frequency resolution of 1 Hz, a measurement bandwidth of 1 Hz to 1 MHz, and 100,001 measuring points per trace. The dynamic range of the VNA is 95-128 dB, the measurement time is less than 2.5 s, and the directivity is 35-50 dB. The output power can reach + 12dbm(output port), and the noise is less than -125dbm (input port). The VNA can be controlled manually via a 12.1-inch touchscreen LCD or remotely via the RJ-45 LAN/USB 3.0 interface. It is a benchtop device measuring 18.2 x 9.4 x 14.2 inches with BNC female, 2.92 mm male and 2.4 mm male connectors.
Features:
-
2/4-port vector network analyzer, from 100 kHz to 43.5 GHz
-
Port 2 ports, 4 ports
-
Port connectors 2.4 mm, 2.4 mm - male, 2.9 mm, 2.92mm - male
-
Port impedance 50 ohms
