Product Description:

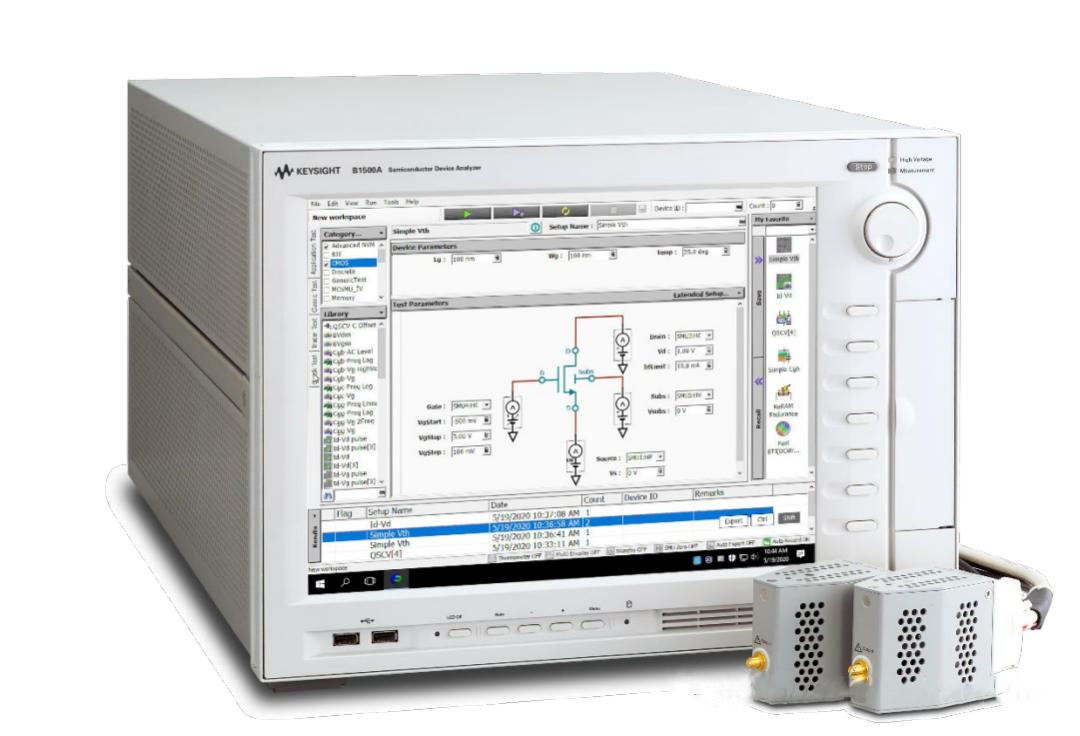

Keysight B1500A semiconductor device parameter analyzer is a comprehensive device characterization solution with rich measurement functions such as IV, CV and rapid pulse IV, and the measurement reliability is very high. Quickly switch between CV and IV measurements without reconnecting cables. The ability to capture ultra-fast transient phenomena that other traditional test instruments cannot capture. Capable of detecting multi-frequency AC capacitance measurements in the 1 kHz to 5 MHz range. With an intuitive 15-inch touchscreen interface, data analysis can be performed without the need for an external PC. With up to 10 slots in a B1500A machine, you can choose the measurement module for it. Enjoy the convenience of a 15-inch wide touch screen with the intuitive Keysight EasyEXPERT group+ software.
Features:
-
Pc-based instrument with Windows XP Professional operating system
-
Single-box solutions for current voltage (IV), capacitance voltage (CV), pulse generation, fast IV and time domain measurements.
-
Ten module slots for source monitor units (SMU) and other module types (MFCMU, HV-SPGU, and WGFMU)
-
Offline data analysis and application test development via Desktop EasyEXPERT software
-
Perform current and voltage (IV) measurements
-
Perform capacitance and voltage (CV), capacitance and time (Ct), and capacitance and frequency (Cf) measurements
