Product Description:

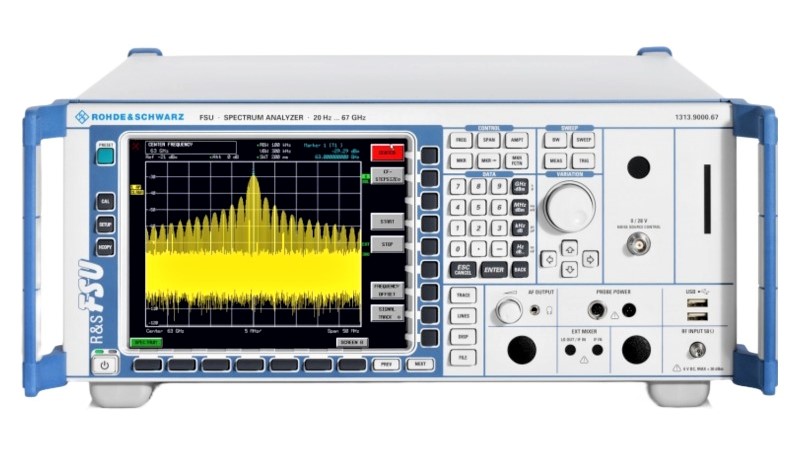

The Rohde & Schwarz FSU43 is a high-performance spectrum analyzer with outstanding performance in phase noise, dynamic range and measurement accuracy to meet any challenge in RF analysis - aerospace and defense or general purpose microwave applications. With its wide dynamic range, Rohde FSU43 is an ideal tool for base station development and testing. Add to that the excellent features already included in the standard model, such as < 0.3 dB total measurement uncertainty, gate scanning and IF power triggering.
The Rohde & Schwarz FSU43 is a versatile and easy to use measurement tool with a full range of detectors for various signal types, multiple resolution filters and other applications. Due to its low phase noise and low background noise, the Rohde & Schwarz FSU43 is an ideal instrument for radar development and stray shot finding measurement tasks. The inherent noise level of the FSU43 can be reduced by using noise correction, during which the instrument measures its own noise in its current operating mode and then removes it from the trace through signal processing, enabling the measurement of weak signals close to thermal noise.
Features:
-
Frequency range 20 Hz to 43 GHz
-
Phase noise -133 dBc (typical)
-
Resolution bandwidth 10 Hz to 10 MHz
-
Display linearity 0.1 dB (0 dB to -70 dB)
