Product Description:

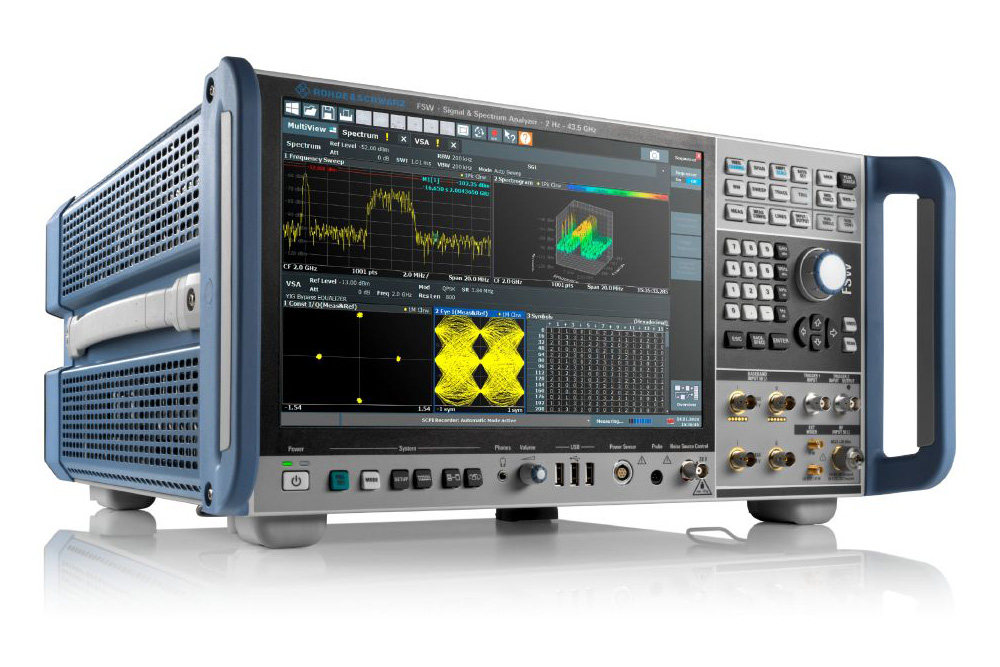

Rohde&Schwarz FSW43 is a signal and spectrum analyzer developed for the microwave range. The R&S FSW43 can analyze microwave applications in the frequency range up to 43.5 GHz, but by using the brand's harmonic mixers, this range can be extended to 110 GHz. The RF performance of the FSW43 makes it suitable for wireless, satellite and radar applications.
Features:
-
Frequency range from 2 Hz to 43.50 GHz (up to 500 GHz using external harmonic mixers from Rohde & Schwarz)
-
Low phase noise of -137 dBc (1 Hz) at 10 kHz offset (1 GHz carrier)
-
-88 dBc Dynamic range with noise cancellation for WCDMA ACLR measurements
-
Up to 5 GHz analysis bandwidth
-
Total measurement uncertainty up to 0.4 GHz <0.4 dB
-
Real-time analysis with up to 512 MHz bandwidth
-
High resolution 12.1% 22 (31 cm) touch screen for easy operation
-
Multiple measurement applications can be run and displayed in parallel
