Product Description:

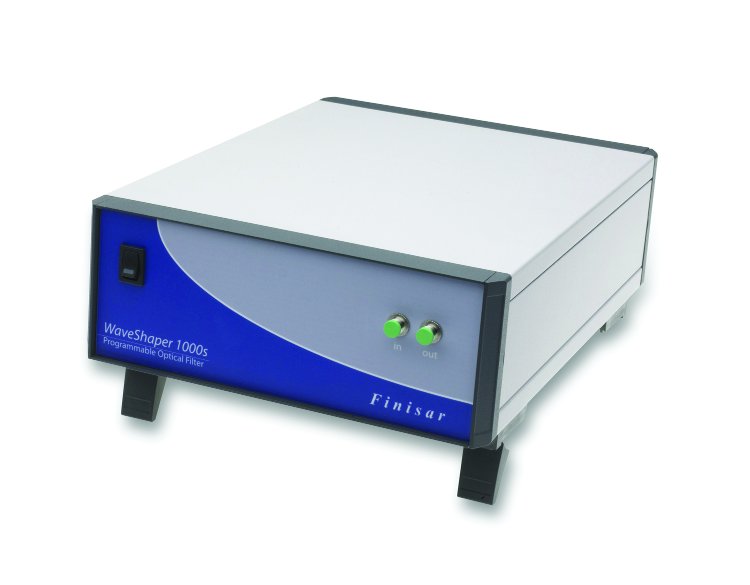

The WaveShaper 1000S is a programmable filter that users can program as needed to achieve specific filtering functions. The filter can control the amplitude and phase of the full C-band band, providing users with a wide range of wavelengths to choose from. In the field of material processing, the filter can also accurately control the laser pulse to meet the needs of different material processing, improve production efficiency and product quality.
Features:
-
Support for arbitrary user-generated channel and filter shapes
-
For the C or L bands, the bandwidth can be set to 10 GHz to about 5 THz
-
For C + L-band models, the bandwidth can be set to 20 GHz to about 9 THz
-
Set Resolution to 1GHz
-
Amplitude and phase can be manipulated
-
The WaveManager software converts user specifications into the desired optical shape
-
Support band resistance and optical comb filters
-
For all filter types, attenuation can be controlled in the range of 30 dB.
-
Remote control via USB 2.0 and Ethernet
