Product Description:

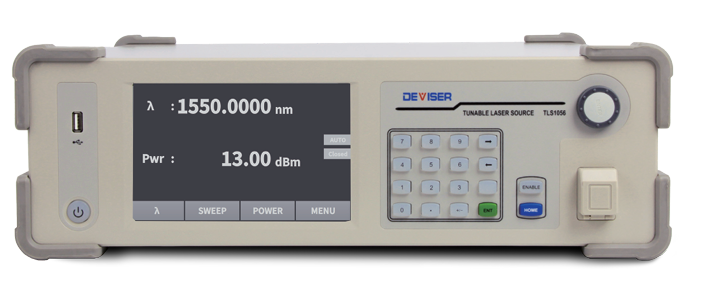

The TLS1056 Deviser, a high specification tunable laser, applies its mature technology and experience in optical, mechanical and electrical fields for many years. The well-designed laser cavity combined with the ultra-low noise circuit board realizes the characteristics of wide wavelength range, high optical power, low noise, narrow line width and fast mode-skipping scanning.
The TLS1056 is implemented with an external cavity tuning structure. The drive mechanism is robust and reliable to ensure the long-term performance of the instrument. Ensures a stable wavelength transmission without skipping mode
Out. The stable and reliable opto-mechanical design enables fast wavelength scanning while ensuring high wavelength accuracy and output stability.
Features:
-
Wide tunable range 1480nm-1640nm
-
>100nm/s scanning speed bidirectional scanning
-
High output power of +15dBm
-
Very low ASE, high dynamic range
-
Narrow line width <60kHz
