Product Description:
Siglent SNA6024A Vector Network Analyzer (VNA) is a versatile tool with a frequency range of 100kHz to 13.5GHz and support for 4-port scattering and differential measurements. Ideal for determining a filter's Q-factor, bandwidth and insertion loss, it also provides impedance conversion, measurement of plane movement, limit testing, ripple testing, fixture simulation and adapter removal/insertion adjustment. Additional options available separately include time domain (TDR), Spectrum analysis (SA), scalar mixer measurement, pulse measurement, material measurement, external switching matrix, and high-performance reference sources.

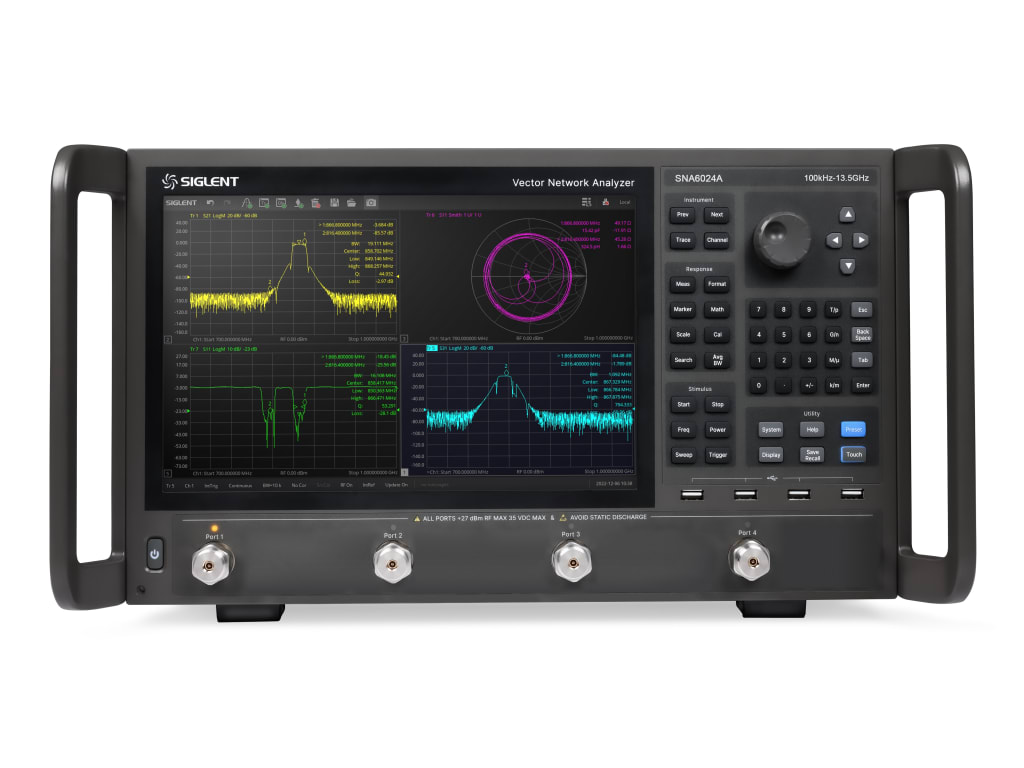

Physically, the SNA6024A VNA has a 12.1-inch high-resolution color touch LCD screen for displaying tracks, function keys, and other measure-related information. For connectivity, it includes LAN, USB device, and USB host (USB-GPIB) interfaces, and supports static and dynamic allocation of LAN-related parameters. The analyzer supports dual-port configuration and VNC remote access to web pages, allowing remote projection of analyzer display content, and supports mouse and keyboard input for parameter adjustment. When processing results, it supports saving and invoking functions in various file formats, including STA, CSA, CSV, SnP, and JPG/PNG image files.
Features:
Frequency range: 100k-13.5GHz
Number of ports: 4
Frequency resolution: 1 Hz
Level resolution: 0.05dB
Intermediate frequency bandwidth range (IFBW) : 10 Hz-3 MHz
