Product Description:

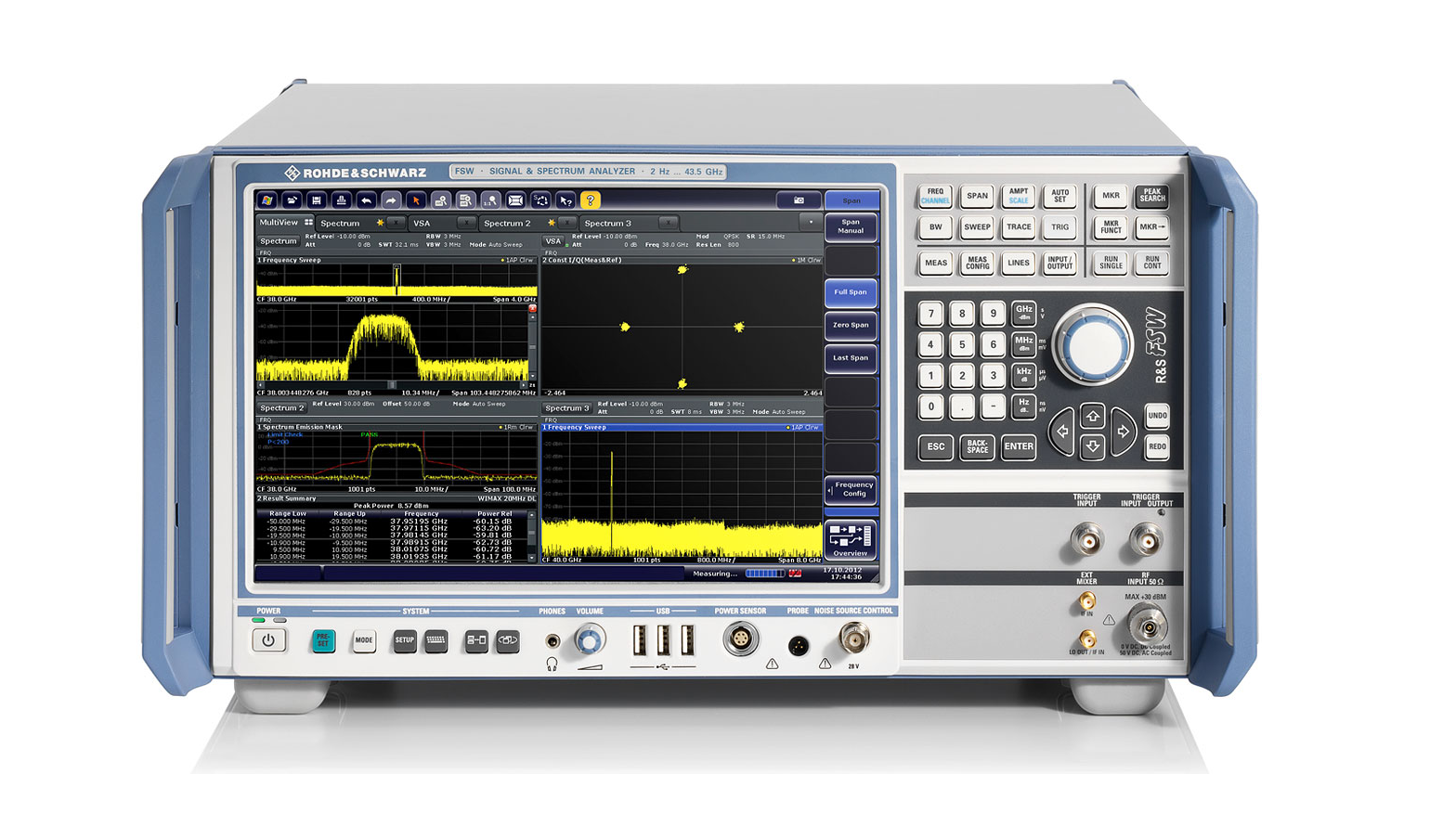

The new high-performance R&S®FSW Signal and Spectrum analyzer meets customers' high performance requirements with low phase noise, wide analysis bandwidth, and intuitive operation to make testing fast and easy.
Features:
• Frequency range from 2 Hz 8/13.6/26.5/43.5/50/67/85 GHz (extended to 110GHz with external harmonic mixers)
• Low phase noise to -137dBc/Hz@1GHz,10kHz frequency offset
WCDMA adjacent channel power ratio test -88dB dynamic range (noise cancellation turned on)
• Up to 2GHz analysis bandwidth
• As low as 0.4dB total measurement uncertainty in the 8 GHz range
• High resolution 12.1 "touch screen for easy operation
• Support multi-task parallel measurement and display
