Product Description:

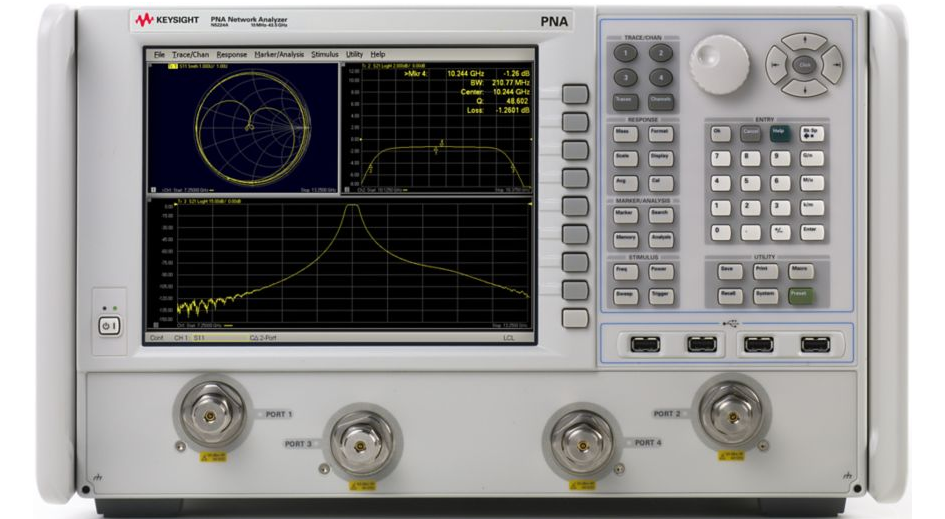

The Keysight N5224A Network Analyzer (PNA Series) is the industry's best-performing microwave network analyzer for passive and active device testing, with frequencies ranging from 10mhz to 43.5 GHz, providing many advanced measurement applications.
The Keysight N5224A network analyzer is used to test a variety of passive and active devices such as filters, diplexers, amplifiers, and inverters, as well as millimeter wave, signal integrity, and material measurement.
The N5224A offers a high power source and the best linear receiver (at the time of product launch), giving it the most accurate S-parameter measurement and widest power range on the market.
Product features:
-
10 MHz to 43.5 GHz
-
2 ports with a single source or 4 ports with two built-in sources
-
127 dB system and 132 dB receiver dynamic range, 32,001 points, 32 channels, 15 MHz IF bandwidth
-
High output power (+13 dBm) and wide power scanning range (38 dB)
-
Best dynamic accuracy: 0.1 dB compression at +12 dBm input power on the test port
-
-114 dBm low noise background at 10 Hz IF bandwidth
