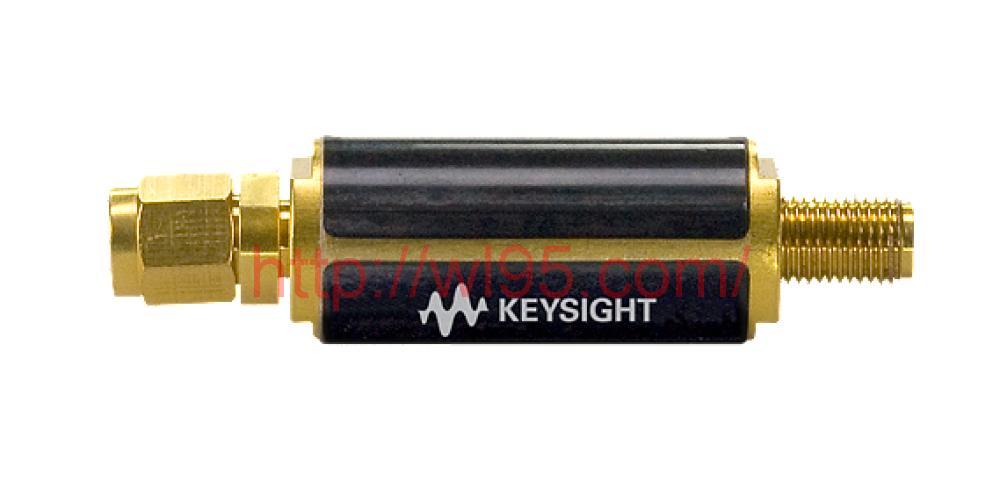

N9355CK01 是一款二极管限制器，用于保护敏感示波器通道不受电过载应力（EOS）和静电放电（ESD）的破坏。例如，电压超过 ±2V 时，可以破坏示波器中使用的高性能采样器。限器可大幅降低过载电压等损坏仪器敏感器件的可能性，从而确保示波器能够长时间稳定运行。
54754A 等具有双电通道的器件需要装配两个 N9355CK01。TDR 模块中步进发生器使用 ≤ 0.2 V 的电压，远低于 N9355CK01 限制器的二极管阀值。如果信号电压不超出 -0.5V 至 +0.5V 的范围，N9355CK01 可用于保护 86105X 和其他类似模块的电通道
Rated impedance: 50 Ω
Frequency range: DC to 26 GHz
Voltage drop ± 0.6 to 0.7 V (at ±10 mADC)
The above technical indicators are typical values and cannot be guaranteed.
N9355CK01 is a diode limiter used to protect sensitive oscilloscope channels from electrical overload stress (EOS) and electrostatic discharge (ESD). For example, when the voltage exceeds ±2V, the high-performance sampler used in the oscilloscope can be destroyed. The limiter can greatly reduce the possibility of damage to the sensitive components of the instrument such as overload voltage, so as to ensure that the oscilloscope can operate stably for a long time.
Devices with dual electrical channels such as 54754A need to be equipped with two N9355CK01. The step generator in the TDR module uses a voltage ≤ 0.2 V, which is much lower than the diode threshold of the N9355CK01 limiter. If the signal voltage does not exceed the range of -0.5V to +0.5V, N9355CK01 can be used to protect the electrical channels of 86105X and other similar modules
