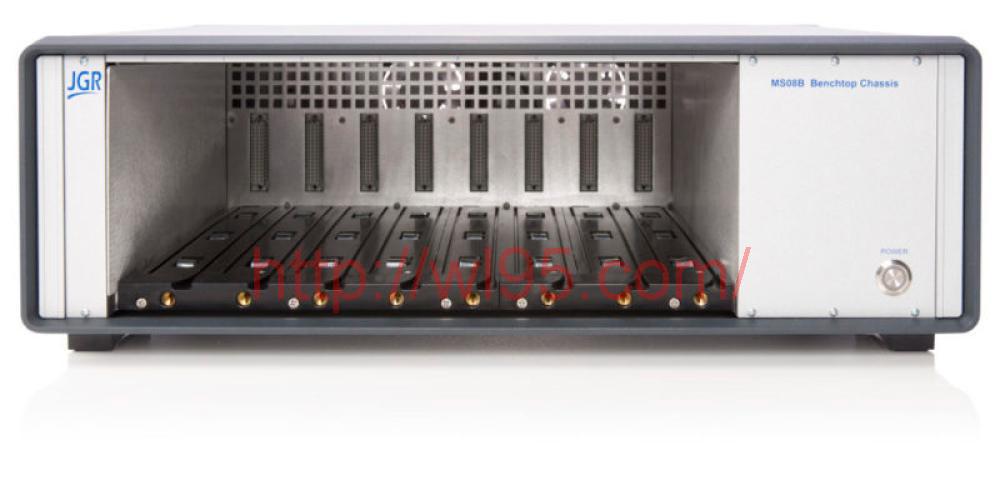

电缆组装测试系统的模块化单元可以使用 MS05B/MS08B 台式主机或 MS10R 机架式主机以及可定制的外部计算机*供电。MS 大型机通过包含在 Windows 10、Windows 8 或 Windows 7 上运行的 PCI 卡与计算机通信。
MS 主机允许在单个站内进行单模和多模插入损耗和回波损耗测试。可以设置不同的模块化配置来测试多达四个波长。将 MS12 与 MS7 光开关配对允许在单个主机中进行多光纤测试。级联主机或与外部 SX8 开关配对可满足更高的通道数测试要求。
主要特点
The modular unit of the cable assembly test system can be powered by MS05B/MS08B desktop host or MS10R rack-mounted host and a customizable external computer*. The MS mainframe communicates with the computer through a PCI card that runs on Windows 10, Windows 8, or Windows 7.
The MS host allows single-mode and multi-mode insertion loss and return loss tests in a single station. Different modular configurations can be set to test up to four wavelengths. Pairing MS12 and MS7 optical switches allows multi-fiber testing in a single host. The cascaded host or paired with an external SX8 switch can meet the test requirements for higher channel counts.
main feature
5-slot, 8-slot or 10-slot mainframe
Controlled by external computer
Pocket
Desktop or rack
