描述：
借助这种轻巧，易于操作的装置，可以测量并查明护套和导体的 故障，快速，轻松地 找到电缆路径/深度

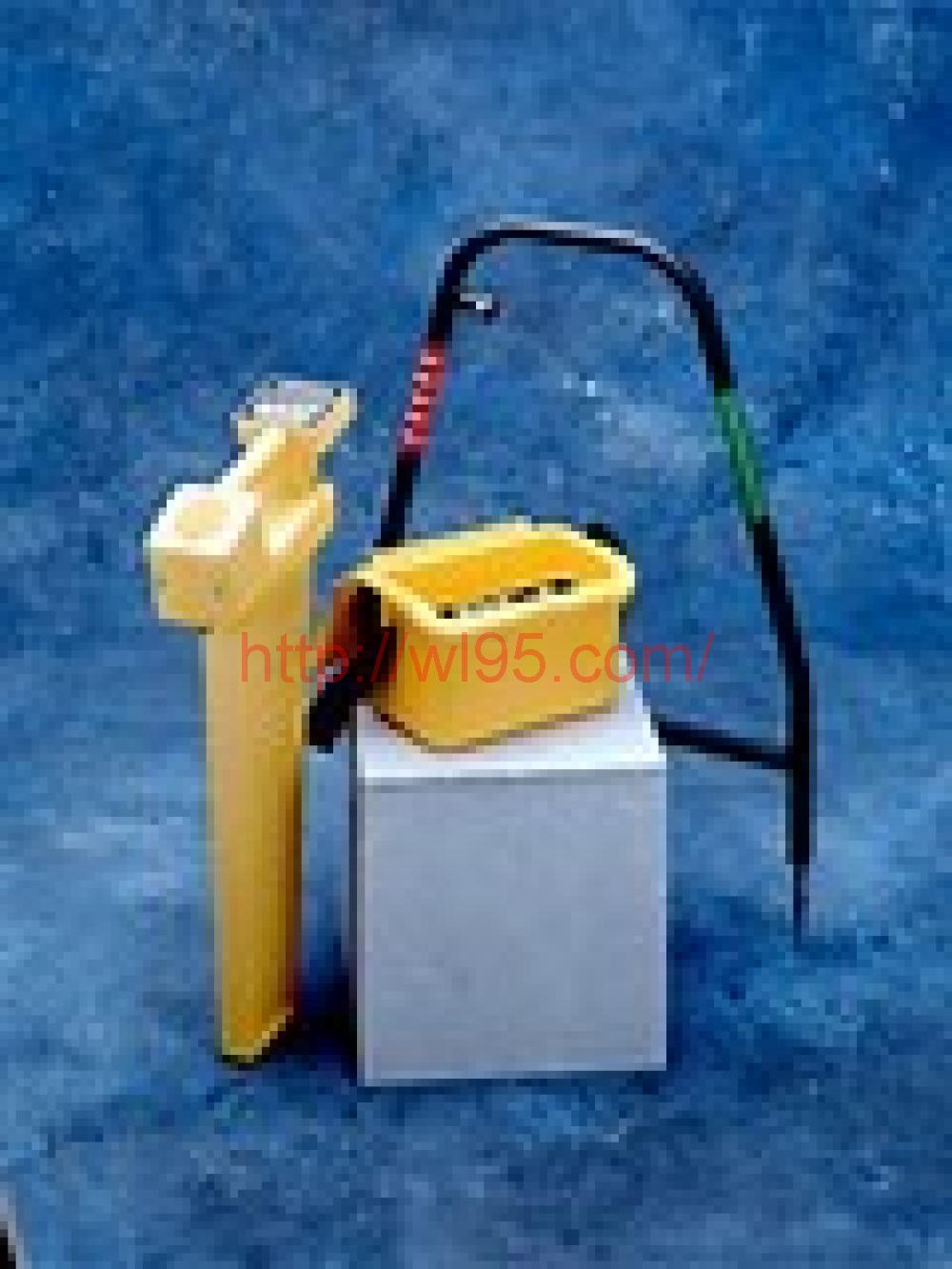

3M Dynatel 2273电缆/故障定位器是一个 基于微处理器的系统，结合了先进的 数字信号处理技术，可以快速， 有效地定位护套（接地）故障并跟踪铜缆和光纤地下电缆（带有金属走线）的 路径 ）。轻巧，紧凑且平衡良好 的2273电缆/故障定位器准确地：
2273电缆/故障定位器提供准确的电缆或 探空仪深度测量值，以英寸，英尺和英寸或厘米（用户可选）为单位进行数字读数 。 另外，与3M Dynatel 2205/2206 EMS标记定位附件一起使用时 ， 系统可以：
四种操作模式，即使在拥挤的地方也能精确定位
对于电缆路径定位，Dynatel 2273接收器使用 四种用户选择的定位模式之一-双峰值，双 零位，差分或特殊峰值（这会增加接收器在较长距离上进行跟踪的 灵敏度）。 选择哪种模式取决于在定位条件下哪种模式最有效 。 接收器包括四个音量设置，其中包括一个 特殊的“扩展器”功能，可使峰值和零点 更加明显。
Measure and pinpoint sheath and conductor faults, locate cable path/depth quickly and easily with this lightweight, easy-to-handle unit
The 3M Dynatel 2273 Cable/Fault Locator is a microprocessor-based system that incorporates advanced digital signal processing techniques to quickly and efficiently locate sheath (earth return) faults and trace the path of underground cables, both copper and fiber optic (with metallic trace wire). Lightweight, compact and wellbalanced, the 2273 cable/fault locator accurately:
The 2273 cable/fault locator provides accurate cable or sonde depth measurements, giving a digital readout in inches, feet and inches, or centimeters (user-selectable). Additionally, when used in conjunction with the 3M Dynatel 2205/2206 EMS Marker Locating Accessory, the system can:
Four modes of operation for accurate locates, even in congested areas
For cable path locating, the Dynatel 2273 receiver uses one of four user-selected locating modes - dual peak, dual null, differential or special peak (which increases the sensitivity of the receiver for tracing over longer distances). The mode is selected depending on which is most effective under the locating conditions. The receiver includes four volume settings, including a special "expander" function that makes peaks and nulls more pronounced.
