描述

PACE5000 / PACE6000采用全数字控制，以提供高控制稳定性和高压摆率，而其数字表征的压力传感器可提供与最新一代的压阻和TERPS压力传感器相关的质量，稳定性，更高的带宽和精度。

PACE5000 / PACE6000气动模块化压力控制器汇集了GE公司Baker Hughes的最新控制和测量Druck技术，为自动生产，测试和校准提供了优雅，快速，灵活和经济的压力控制解决方案。

新型PACE气动模块化压力控制器汇集了GE的最新控制和测量技术，为自动生产，测试和校准的压力控制提供了一种优雅，快速，灵活和经济的解决方案。

PACE采用全数字控制，以提供高控制稳定性和高压摆率，而其数字化特性的压力传感器可提供与最新一代压阻和TERPS设备相关的质量，稳定性，更高的带宽和精度。



PACE 5000机箱
•单通道压力控制器底盘
•易于使用彩色触摸屏显示器
•可与任何可互换使用PACE CM控制模块作为台式或机架安装压力控制器
•具有碱性，预置直观任务驱动菜单数＆divide作为标准
•开关测试，泄漏测试，突发测试，测试程序，模拟输出和无电压触点可作为可选任务提供
•多种语言-可以轻松翻译和下载满足特定要求的任何其他语言
•标配RS232，IEEE连接，以太网和USB

PACE6000机箱的其他功能：
•双通道压力控制器底盘
•装有两个PACE CM控制模块，PACE6000可以在单压力，自动量程或同时双压力控制模式下使用*
•航空选件，可以在航空装置中进行完全控制
•无模块压力范围比率限制

PACE5000 / 6000选项

开关测试
开关测试可自动执行压力开关设备的测试。测试后，将显示触点打开和闭合时的压力以及开关磁滞。还可以将“开关测试任务”设置为重复几次，以执行开关或捕获开关的最大值，最小值和平均值。

泄漏测试
泄漏测试向连接到仪器的外部系统施加测试压力，以确定由于泄漏引起的压力变化幅度。此应用程序设置测试压力和停留时间，以消除测试压力和泄漏测试时间段的潜在绝热影响。完成后，显示屏将显示开始压力，结束压力，压力变化和泄漏率。

测试程序
“测试程序”选项提供了一种在仪器本身内创建，存储和执行众多测试程序的功能。这对于需要手动输入以进行快速原型制作，制造和生命周期测试的较长，重复性更高且费力的过程特别有用。还可以使用大容量存储设备将测试程序传输到PC进行进一步编辑，然后将其从大容量存储设备复制回仪器。

爆破测试爆破测试是PACE系列的一个应用程序，主要设计用于测试爆破片。爆裂测试选项可控制压力的增加，并准确测量设备破裂或发生爆裂的确切点。

无电压触点（VFC）无电压触点可控制外围设备，如真空泵，烤箱等。每个VFC选件都有三个独立的无电压NO / NC继电器触点。在PACE仪器中可以设置许多条件来触发继电器切换其触点。

模拟输出可通过设置菜单屏幕对模拟输出进行编程，以输出与所选仪器范围成比例的信号。这使仪器可以与PC或PLC I / O卡，远程显示器，图表记录器或其他数据记录设备连接。
用户可以选择0至10 V，0至5 V，-5至5 V和0/4至20 mA的输出。主机测量温度在主机工作温度范围内的精度为0.05％FS，可变更新速率为每秒80读数。该选项可在最小压力和FS压力之间进行编程，以实现与压力成比例的输出。

航空选件（仅PACE6000，与PACE CM2-A控制模块一起
使用）具有“接地”功能的校准空速和高度的同时控制（与两个PACE CM2-A控制模块一起使用时）。

指示和纯航空单位提供的控制：
Altitude-米或英尺
的空气速度-节或公里/小时，英里
马赫马赫数
爬升率–英尺或米/分钟，秒

Description

PACE5000/PACE6000 employs full digital control to provide high control stability and high slew rate, while its digitally characterised pressure sensor offers the quality, stability, higher bandwidth and precision associated with this latest generation of piezo-resistive and TERPS pressure sensors.

The PACE5000/PACE6000 pneumatic modular pressure controller brings together the latest control and measurement Druck technology from Baker Hughes, a GE company to offer an elegant, fast, flexible and economical solution to pressure control for automated production, test and calibration.

The new PACE pneumatic modular pressure controller brings together the latest control and measurement technology from GE to offer an elegant, fast, flexible and economical solution to pressure control for automated production, test and calibration.

PACE employs full digital control to provide high control stability and high slew rate, while its digitally characterised pressure sensor offers the quality, stability, higher bandwidth and precision associated with this latest generation of piezo-resistive and TERPS devices.



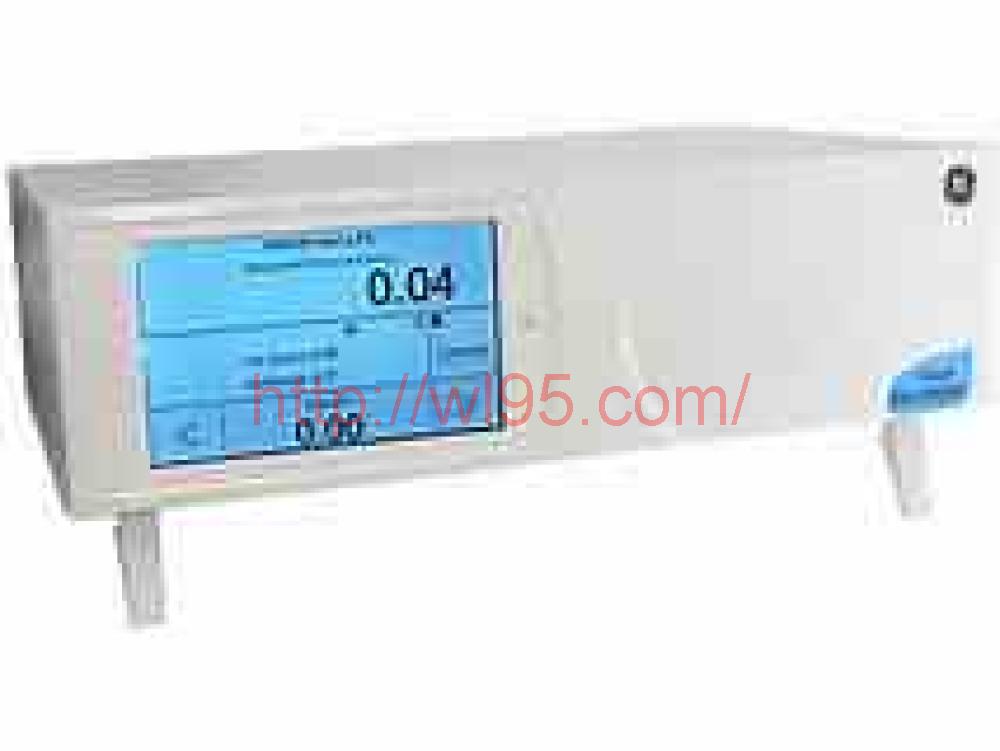

PACE5000 Chassis
• Single channel pressure controller chassis
• Easy to use colour touch screen display
• Can be used with any interchangeablePACE CM control module as a bench top or rack mounted pressure controller
• Intuitive task driven menu with basic, preset& divide as standard
• Switch test, leak test, burst test, test program,analogue output and voltage free contacts available as optional tasks
• Multi Language - any additional language to suit specific requirements can easily be translated & downloaded
• RS232, IEEE connectivity, Ethernet and USB as standard

PACE6000 Chassis Additional features:
• Dual channel pressure controller chassis
• With two PACE CM control modules fitted the PACE6000 can be used in single, auto-ranging or simultaneous dual pressure control mode*
• Aeronautical option enabling full control in aeronautical units
• No module pressure range ratio limit

PACE5000/6000 Options

Switch Test
Switch Test automates the testing of pressure switch devices. Following the test, the pressure at which contacts open and close and the switch hysteresis is displayed. Switch Test Task can also be set to repeat several times to exercise a switch or capture switch toggle max, min and average values.

Leak Test
Leak Test applies a test pressure(s) to an external system connected to the instrument to determine the magnitude of pressure variations due to leaks. This application sets the test pressure and a dwell time to eliminate potential adiabatic effects at the test pressure and the leak test time period. On completion, the display shows the Start Pressure, End Pressure, Pressure Change and Leak Rate.

Test Program
The Test Program option provides a facility for creating, storing and executing numerous test procedures within the instrument itself. This is particularly useful for longer, more repetitive and laborious procedures requiring manual inputs for rapid prototyping, manufacturing and life cycle testing. Test Programs can also be transferred to a PC using a mass storage device for further editing, and copied back from the mass storage device to the instrument.

Burst Test Burst Test is an application for the PACE Series designed primarily for the testing of pressure rupture discs. The burst test option applies a controlled increase of pressure and accurately measures the exact point at which the device rupture or burst occurs.

Volt Free Contacts (VFC) Volt Free Contacts enable control of peripheral devices such as vacuum pumps, ovens, etc. Each VFC option has three independent volt-free NO/NC relay contacts. A number of conditions can be set within a PACE instrument to trigger a relay toggling its contacts.

Analogue Output The analogue output can be programmed via the setup menu screen to output a signal proportional to the instrument range selected. This allows the instrument to interface with PC or PLC I/O cards, remote displays, chart recorders or other data logging equipment.
Users can select outputs of 0 to 10 V, 0 to 5 V, -5 to 5 V and 0/4 to 20 mA. Precision with respect to host instrument measured pressure 0.05% FS over the host instrument operating temperature range, variable update rate to 80 readings per second. The option is programmable between minimum and FS pressure for proportional output against pressure.

Aeronautical Option (PACE6000 only, to be used with PACE CM2-A control modules)
Simultaneous control of calibrated airspeed and altitude (when used with two PACE CM2-A control modules) with a “go to ground” function.

Indication and control available in pure aeronautical units:
Altitude- feet or meters
Air Speed- knots or km/hour, mph
Mach- mach number
Rate of climb– feet or meters/minute, second
