通用传感器，10 MHz至6 GHz
MA2480A系列是真正的RMS传感器，动态范围为80 dB。这些功率传感器可用于CW，多音和调制RF波形（例如3G，4G和OFDM）的平均功率测量。传感器架构由三对二极管组成，每对二极管配置为在传感器的动态范围内的平方律区域内工作。因此，无论输入信号的调制类型或带宽如何，它都能测量出真有效值功率。选件1提供TDMA测量功能，可在宽动态范围内校准一对二极管对的线性度，从而使其成为真正的通用传感器。

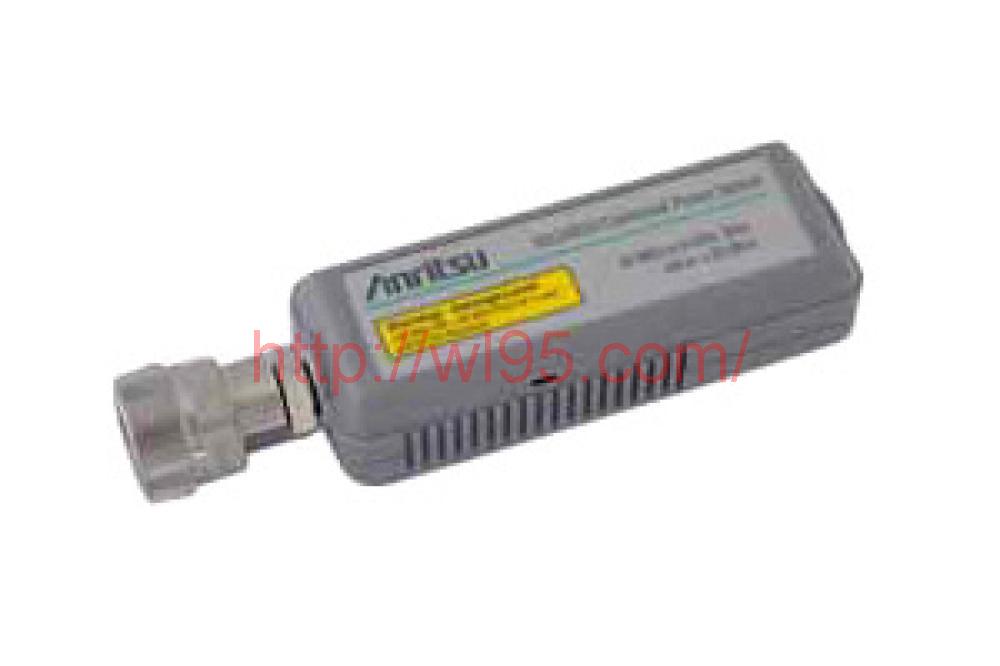

Universal Sensor, 10 MHz to 6 GHz
The MA2480A series are true RMS sensors with a dynamic range of 80 dB. These power sensors can be used for average power measurements on CW, multi-tone and modulated RF waveforms such as 3G, 4G, and OFDM. The sensor architecture consists of three pairs of diodes, each one configured to work in its square law region over the dynamic range of the sensor. Therefore, it measures true RMS power regardless of the type or bandwidth of the modulation of the input signal. Option 1 provides TDMA measurement capability, calibrating one of the diode pairs for linearity over a wide dynamic range, thus making it a truly universal sensor.
