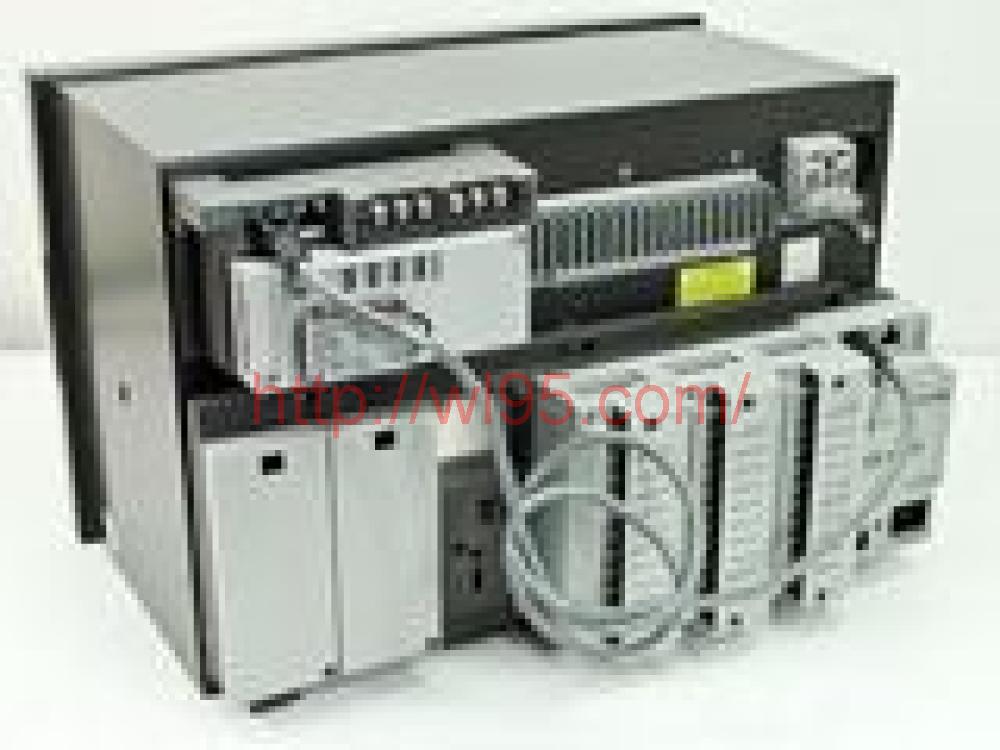

DR240混合式多点记录仪代表了横河电机成功的HR2400和HR2500E 10英寸记录仪的下一步发展，它利用小型化将仪器的深度减小一半，同时将输入容量增加到多达300点和60个计算通道。
像DA100前端一样，这款复杂的混合记录仪具有平面变压器和小型化的固态继电器，可在紧凑的包装中进行可靠的数据收集，记录和显示。
该单元接受通用输入，并提供RS422通信功能，用于大型安装的类似模型的多点联网。
DR240提供可选的浮点数学计算功能，每个通道具有36个字符的公式，并具有102个字符的真空荧光显示。它还具有内置的3.5英寸PC磁盘驱动器，用于存储收集的数据，保存设置或将程序下载到刻录机中。
DR240是连续排放监测和发电机温度监测以及其他环境和过程应用的理想选择。
The DR240 hybrid multipoint recorder represents the next evolution of Yokogawa's successful HR2400 and HR2500E 10-inch recorders, using miniaturization to reduce the instrument’s depth in half while increasing input capacity to as much as 300 points and 60 calculated channels.
Like the DA100 front end, this sophisticated hybrid recorder features the planar transformer and miniaturized solid state relays for reliable data collection, recording and display in a compact package.
The unit accepts universal inputs and offers an RS422 communication feature for multidrop networking of similar models for large installations.
The DR240 offers optional floating point mathematical computation capability with a 36-character formula per channel and 102-character vacuum fluorescent display. It is also available with a built-in 3.5-inch PC disk drive to store collected data, save setups, or to download programs into the recorder.
The DR240 is ideal for continuous emissions monitoring and generator temperature monitoring among other environmental and process applications.
