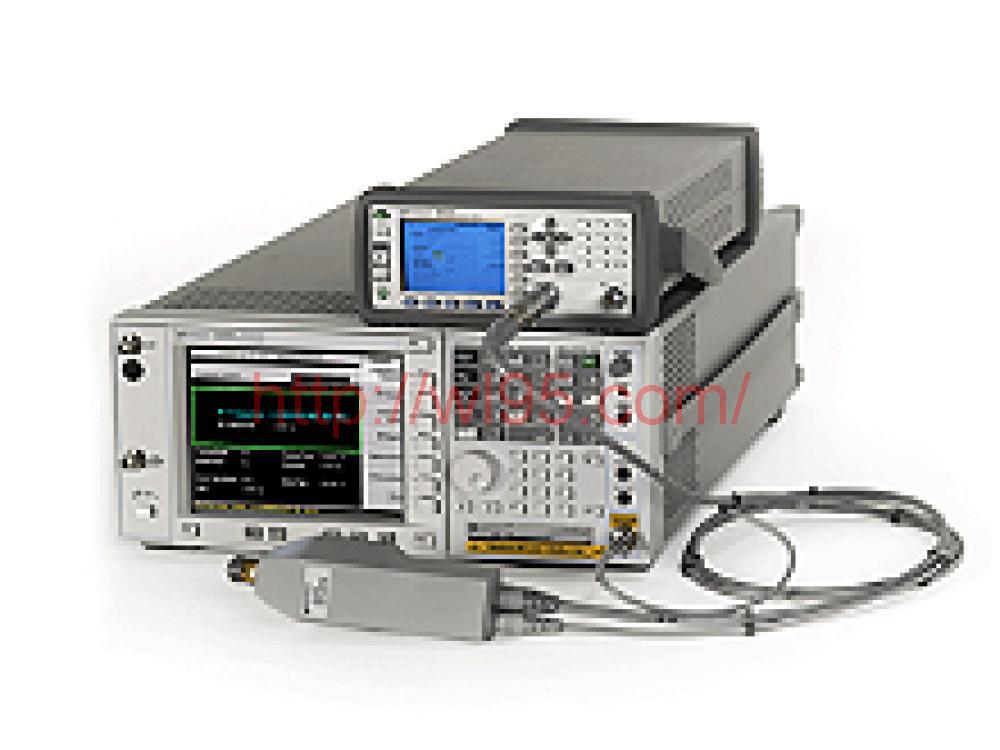

N5531S 测量接收机具有卓越的性能，是对信号发生器和步进衰减器进行可溯源校准的理想工具。它由下列通用仪器组成：配有选件 233 的 PSA 高性能频谱分析仪（E444xA）、P 系列功率计（N1911A/12A）以及具有单一输入连接的传感器模块（N5532A）。
从 2010 年 4 月 1 日起，N5532A 传感器模块已演进为 N5532B。N5532B 传感器模块与 N5532A 具有相同的技术指标、功能和外形。
N5531S 测量接收机提供：
The N5531S measuring receiver delivers superior performance and provides the ideal tool for traceable calibration of signal generators and step attenuators. It is comprised of general-purpose instruments: a PSA high-performance spectrum analyzer (E444xA) with Option 233 and a P-Series power meter (N1911A/12A), and a sensor module (N5532A) with single-input connection. The N5531S measuring receiver offers:
•Metrology-grade test system based on the off-the-shelf high-performance instrument hardware
•Fast and precision tuned RF level (TRFL) measurements
•Easy-to-use one-button operation
•Optional audio analysis (PSA Option 107)
•Auto carrier triggering for AM/FM/PM measurements
•Complete suite of post-demodulation and audio filters including CCITT filter
•TRFL tracking function for the drifting signal source calibrations Key Specfications
•Flexible, compact system for frequency up to 50 GHz •Simple, one-button measurements
•Tuned RF level (TRFL) sensitivity to -140 dBm •Optional audio analysis including SINAD and distortion
•4 Sensor modules with single input connection covering 4 GHz, 18 GHz, 26.5 GHz, and 50 GHz
