带宽：DC~200MHz (-3dB)
输入衰减率：1/10(固定)
最大允许差分电压：±20V (DC+AC峰值)
最大共模输入电压：±60V (DC+AC峰值)
50Ω输出

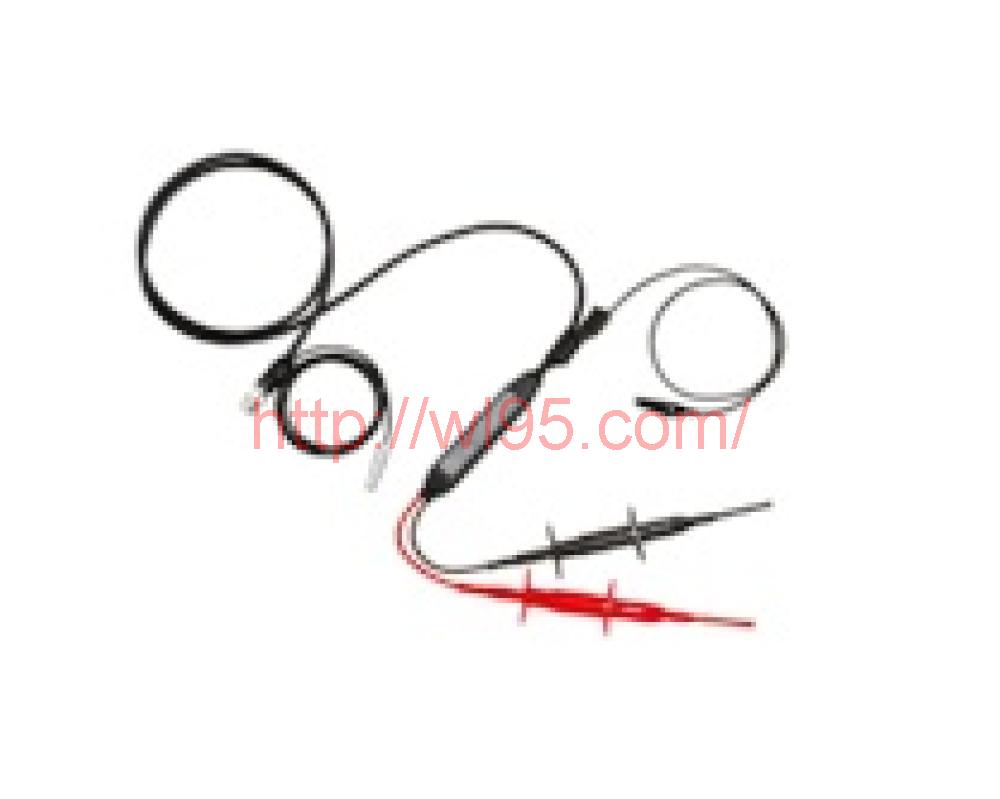

The 701922 is a 10:1 Differential Probe rated at 20Vpeak differential voltage input and 60Vpeak Common-Mode input with 200MHz bandwidth (-3dB). This probe is recommended for CAN bus and can be used with virtuallly any oscillscope with an internal 50Ω termination or use the external 50Ω 700976. This probe is powered via a built in pig-tail LEMO lead. This probe can be powered with Yokogawa scope option /P2 or /P4, or an external power supply 700938-3-D or 701934-D. The probe is supplied with one each pinchers, B9852MF black and B9852MG red and a 50cm ground extension.
