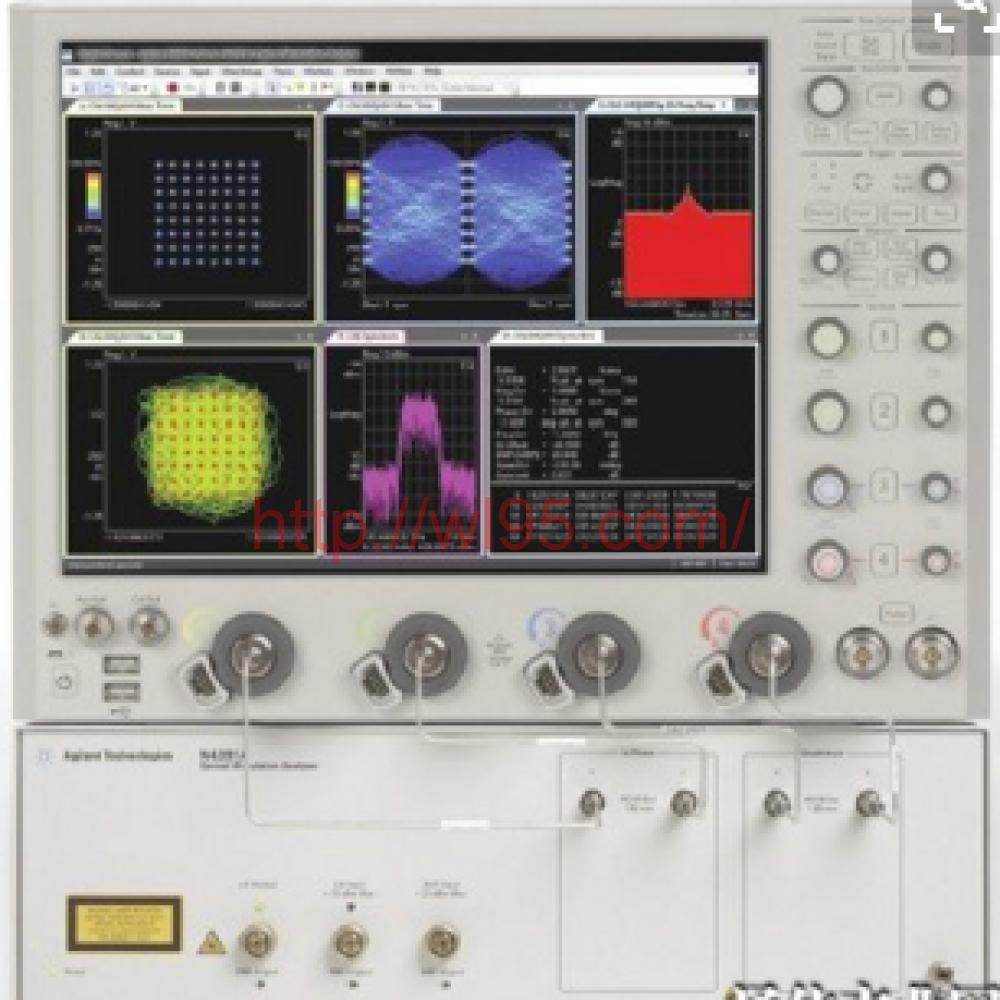

The N4391A is a high end turn-key optical modulation analyzer for advanced research in single and multi-carrier 400 Gbit/s and 1Tbit/s complex modulated transmission systems. It is based on the latest Z-Series Keysight oscilloscopes, a 40 GHz dual polarization coherent receiver and optical modulation vector signal analysis software offering most flexible analysis tools and smart setup for easiest instrument setup.
Benefits
-
Highest confidence in test results through full calibrated turn-key solution
-
Widest range of modulation format offering
-
Based on world class Z-Series 4 channel Keysight oscilloscope
Features
-
Fully integrated in Vector Signal Analysis software with smart setup
-
Analysis software also available as PC stand-alone version
-
User configurable APSK and OFDM demodulator
-
Modulation-format transparent polarization alignment
-
Clearly structured measurement results
-
Optical characterization results for each polarization plane separately
-
Optical summary results for complete signal
-
BER and Q factor separated for each polarization plane and overall signal
-
Freely configurable screen layout
-
Internal PMF switch to select internal or external local oscillator laser for best long term test results
-
Free selection and sequence of DSP algorithms
-
Various CD and PMD compensation and measurement algorithms
-
Integration of user DSP algorithm with the same freedom as Keysight algorithms
