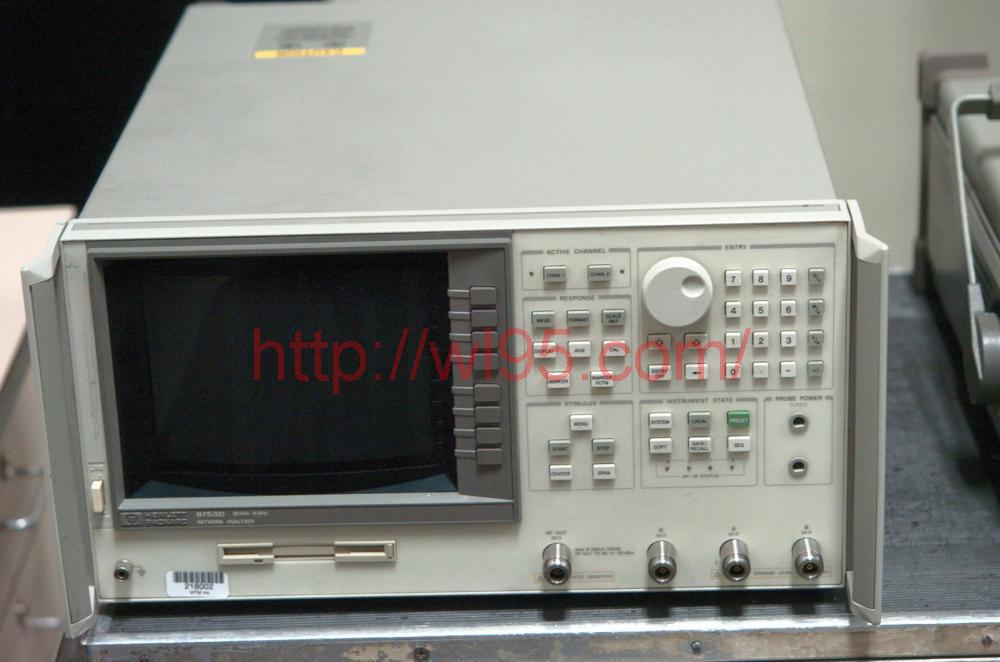

Agilent 8753D
Vector network analyzer provides not only magnitude and phase information, but also offers up to 110 dB dynamic range, makes group delay and time domain measurements, and utilizes vector accuracy enhancement to minimize measurement uncertainty. BRL Test - we are Agilent 8753D experts for sales and repairs.
-
Built-in S-parameter test set for complete forward and reverse measurements, allowing you to completely characterize your component with a single connection
-
Superb accuracy, with the most comprehensive calibration available
-
Optional time domain and swept harmonic measurements
-
Mixer testing with frequency offset capability
-
Optional step attenuator for extended source output power range
-
Pass/fail testing, interpolative error correction, test sequencing, and user-defined test frequencies to enhance productivity
-
Frequency range from 30 kHz to 3 GHz, or optionally 6 GHz.
-
50 and 75 ohm solutions
-
Built-in S-parameter test set provides complete forward and reverse measurements,allowing you to completely characterize your component with a single connection
-
Mixer testing; quickly and easily characterize frequency translating devices such as mixers
-
Add swept harmonic measurements.Characterize amplifier parameters - gain, 1 dB compression, match - and 2nd and 3rd harmonic distortion with the same test setup
-
Built-in 3.5 floppy disk
-
Parallel and serial ports provide interfaces to popular printers and plotters
-
Optional step attenuator for extended source output power range
-
Pass/fail testing, interpolative error correction, test sequencing, and user-defined test frequencies to enhance productivity
-
Two independent display channels for simultaneous measurement of reflection and transmission characteristics
Your 8753D is calibrated, certified and guaranteed to work accurately right out of the box - no problems. Enjoy the added reassurance of a full warranty backed by BRL Test's world class lab.
Options for 8753D
Option 002 Harmonic Measurement Capability .For measuring swept second and third harmonicresponses. Option 006 extends harmonic measurement capability to 6 GHz.
Option 006 6 GHz Frequency Extension. Provides source and receiver operation to 6 GHz. Do not order Option 006 with Option 075.
Option 010 Time Domain Capability. For viewing reflection and transmission responses in time or distance domain.
Option 011 Delete Built-in Test Set. Removes test set components and allows direct access to the R, A, and B receiver inputs. Source start frequency limited to 300 kHz. Do not order Option 011 with Option 075.
Option 075 75 Ohm Impedance. Replaces the standard 50 ohm test set with a 75 ohm test set. Test ports are 75 ohm type-N connectors. Do not order Option 075 with Option 006 or Option 011.
Option 1D5 High Stability Frequency ReferenceProvides improved frequency accuracy over timeand with temperature variation.
Option 0B0 Delete Operating Manual Set
Option 0B1 Add Extra Operating Manual Set
Option 1CM Rack Mount Kit (without handles)
Option 1CP Rack Mount Kit With Handles
