Product Description:

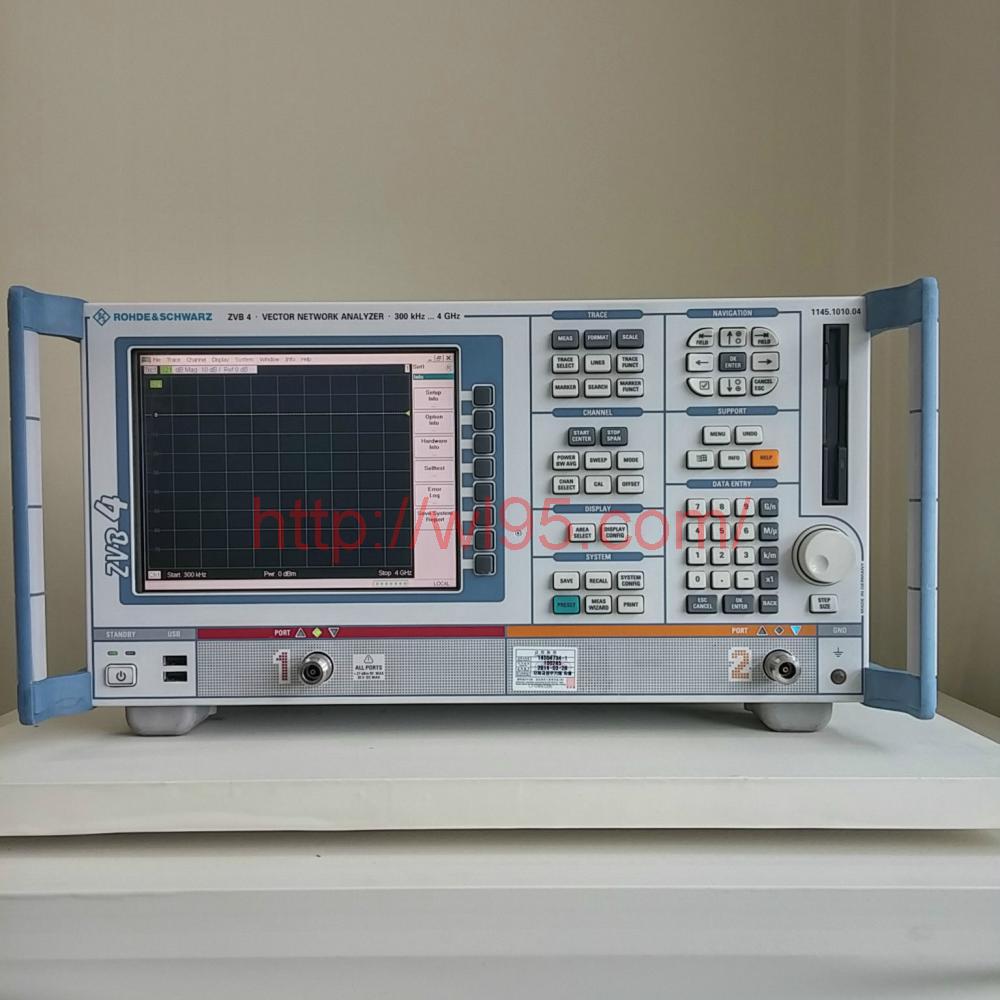

The R&S®ZVB4 vector network analyzer covers the frequency range from 300 kHz to 4 GHz. The Rohde & Schwarz ZVB4 is designed for general measurement of passive and active components. The analyzer greatly simplifies vector network analysis, especially for multi-port measurements and measurements on balanced devices. The R&S®ZVB4 offers comprehensive measurement capabilities, excellent specifications, high measurement and data transfer speeds, and remote control capabilities, making it ideal for development and production applications.
Features:
Multiport concept
2 or 4 test ports - for multi-port and balanced measurements
Two internal sources (four-port models) - provide RF and LO signals for mixer measurements via a single unit
Ability to perform balance measurements - characterize balanced DUT with mixed mode S parameters
Optional automatic calibration unit - speed up calibration and avoid operator error
Excellent specifications
Each trajectory has 60001 points
Dynamic range better than 123 dB (typical 130 dB)
Power scanning range >50 dB
High speed
Measurement time < 4.5ms at 201 test points (frequency sweep)
Switching time between channels < 1 ms
Switching time between instrument Settings < 10 ms
Data transfer time < 0.7ms (201 test points available via RSIB)
Simultaneous measurement of multiple DUTs
Modern user interface
Intuitive Windows-based operation with mouse Operation with hard and soft keys
A large number of channels, tracks, and Settings can be loaded simultaneously
Additional specifications for the R&S ZVB4 Network Analyzer include:
Number of ports: 2 or 4 (optional)
500 kHz IF bandwidth, measurement time at each test point in CW mode:
Measurement time (201 test points) :
Data transfer time (201 test points) :
Via the IEC/IEEE bus:
Over a 100 Mbit/s LAN by VX11:
Over RSIB on a 100 Mbit/s LAN:
Switching time:
Between channels:
Between instrument Settings:
10 Hz Dynamic range when measuring bandwidth (depending on instrument type) :
Between test ports (specified) : >123 db
Between test ports (typical value) : >133 db
Output power of the test port: >13 dBm, typical value 15 dBm
Power scanning range: >50 dB, typical value 60 dB
IF bandwidth: 1 Hz to 500 kHz
Number of channels, charts, traces: each >100
Test points for each trace: 1 to 60001
Operating system: Windows XP Embedded
