描述：
MS2723B手持式频谱分析仪旨在对新浪潮的无线局域网和蜂窝信号（包括802.11a，3G，超宽带和无线医疗病人监护系统）进行高度准确的分析，其101 dB的动态范围是其最佳的类。下一代Anritsu最畅销的Spectrum Master，MS2723B是一款小型易用的便携式频谱分析仪，具有前所未有的测量能力，适用于高达13 GHz的应用。重量不到8磅，无论是在工程台上还是在野外都可以在家中使用。它非常适合测量3G蜂窝电话基站的五次谐波。
准峰值检测与CISPR分辨率带宽一起提供。
多语言用户界面（英语，中文，法语，德语，日语，西班牙语，韩语，意大利语）
MS2723B内置了几种智能测量功能，包括信道功率，相邻信道功率比，载波干扰比（C / I）和场强。此外，还包括AM / FM / SSB解调器。可以使用内部扬声器或使用通用的2.5毫米3线耳机（例如，许多蜂窝电话使用的耳机）来监视解调的信号。
MS2723B频谱分析仪在1 GHz @ 10 kHz偏移下具有-104 dBc / Hz的低相位噪声（典型值），在1 GHz RBW分辨率带宽（RBW）范围为1的情况下具有同类最佳的典型DANL在1 GHz时的-159 dBm。 Hz至3 MHz，视频带宽（VBW）范围为1 Hz至3 MHz。它也是同类产品中频谱分析仪中扫描速度最快的。
特征：
便捷的操作程序，高灵敏度，出色的可重复性和出色的性能使MS2723B能够简化无线系统的测量，从而轻松验证系统的合规性。典型应用包括：
Description：

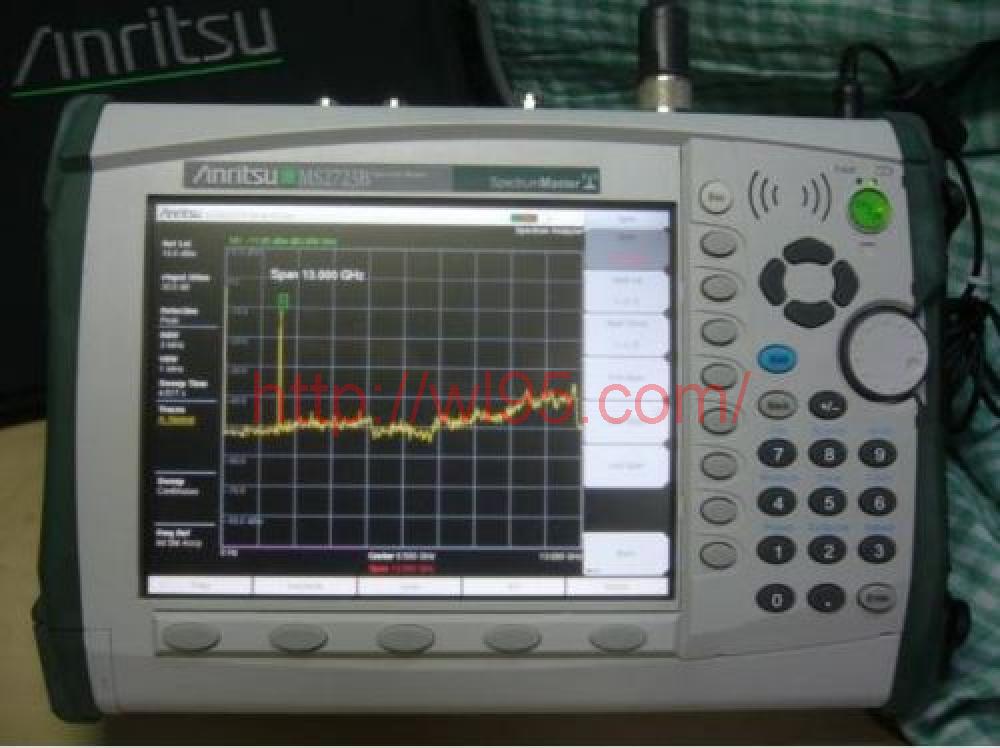

The MS2723B handheld spectrum analyzer is designed to conduct highly accurate analysis on the new wave of wireless LAN and cellular signals, including 802.11a, 3G, ultra-wideband, and wireless medical patient monitoring systems, dynamic range of 101 dB is the best in its class. The next generation of Anritsu's best selling Spectrum Master, the MS2723B is a small and easy to use portable spectrum analyzer with unprecedented measurement capability for applications up to 13 GHz. Weighing in at less than 8 pounds, it is equally at home on the engineering bench and in the field. It is ideally suited for measuring up to the fifth harmonic of 3G cellular phone base stations.
Quasi-peak detection is included along with CISPR resolution bandwidths.
Multilingual User Interface (English, Chinese, French, German, Japanese, Spanish, Korean, Italian)
Several smart measurements are built into the MS2723B, including channel power, adjacent channel power ratio, Carrier to Interference ratio (C/I), and field strength. In addition, an AM/FM/SSB demodulator is included. Demodulated signals can be monitored using the internal speaker or by using a universal 2.5 mm 3-wire headset, such as used with many cellular telephones.
The MS2723B spectrum analyzer has low phase noise of -104 dBc/Hz typical at 1 GHz @ 10 kHz offset, best in its class typical DANL of -159 dBm at 1 GHz, in a 1 Hz RBW resolution bandwidth (RBW) range of 1 Hz to 3 MHz and video bandwidth (VBW) range of 1 Hz to 3 MHz. It also has the fastest sweep speeds of any spectrum analyzer in its class.
Features：
Convenient operating procedures, high sensitivity, excellent repeatability and exceptional performance enable the MS2723B to simplify measurements on wireless systems for easy verification of system compliance. Typical applications include:
